Clear float height picture

Bike running like a dog? This section might well answer your questions. Posting restricted to registered users.
Post Reply
thumper580
Posts: 11
Joined: Fri Jul 13, 2018 2:57 am
AntiSpam: No

Clear float height picture

Post by thumper580 » Thu Jul 19, 2018 10:44 pm

The online manual photo is so old and faded I can't see the reference points where I need to measure to set the 13mm. Appreciate it!

User avatar
nigelrb
Posts: 34
Joined: Fri Jun 22, 2018 10:43 pm
AntiSpam: No
Location: West Midlands (UK)

Re: Clear float height picture

Post by nigelrb » Fri Jul 20, 2018 11:48 am

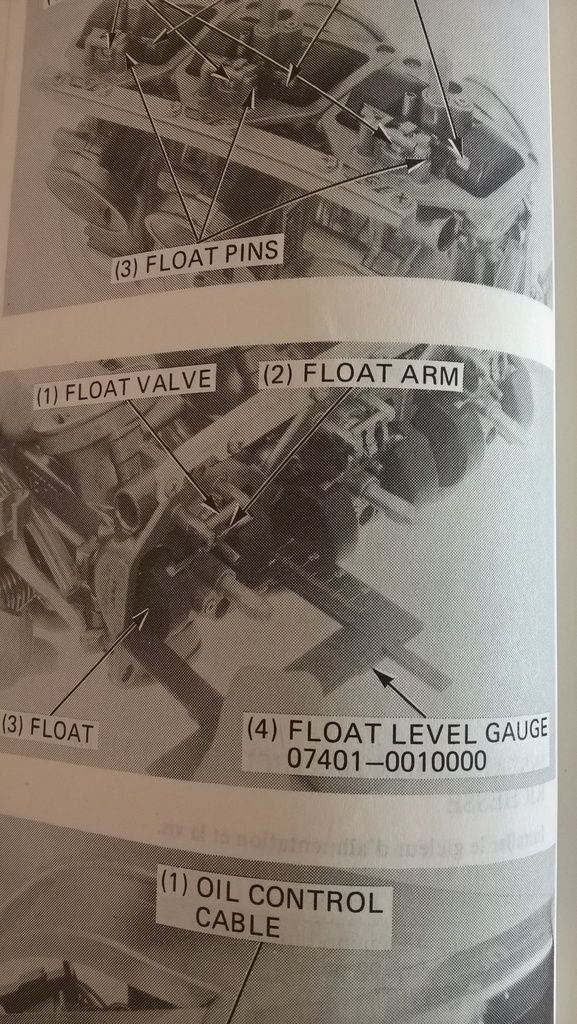

Not sure if this is what you wanted, but I just snapped it from my own manual:

2004 CBR1000RR Fireblade; 2011 CBR1000RR Fireblade; 2018 CBR1000RR Fireblade SP2
1985 VF1000R ('F' series); 1985 NS400R;
2007 MV F4 1000R

thumper580
Posts: 11
Joined: Fri Jul 13, 2018 2:57 am
AntiSpam: No

Re: Clear float height picture

Post by thumper580 » Fri Jul 20, 2018 5:31 pm

Thanks, thats a better picture. Still want to verify the 13mm is from flat horizontal carb body to the top of the float with the float tab just touching the float needle.

User avatar
Channel Hopper
Posts: 1252
Joined: Thu Sep 23, 2004 5:26 pm

Re: Clear float height picture

Post by Channel Hopper » Sat Jul 21, 2018 6:58 pm

Yes, on all Honda bikes I've owned, the distance is from the carburettor flat that the float bowl bolts to.

https://ns400r.co.uk/ns400r/manual/4_fu ... m/4-16.htm

Always measure horizontally so that gravity doesn't work against you. I find clamping lightly in a vice at around 45 degrees helps set these accurately, you can also check the bronze seal around the inlet by use of pressurising (by mouth) and moving the bank of carbs around.

Post Reply
